A built-in grill should look as if it was always part of the island: level with the counter, securely supported, and ready for an evening that moves easily from cocktails to dinner. The difference between that polished result and a costly installation delay often comes down to knowing how to measure grill cutout dimensions before the cabinet, stone, and utilities are finalized.
A grill cutout is not simply the outside size of the grill. It is the opening in the island or counter that receives the grill head, along with the clearances, support, ventilation, and access space that allow it to operate safely. A quarter-inch can matter. So can the difference between the grill body, the cooking surface, the lid, and the insulated jacket.
Start With the Grill's Installation Specifications
The manufacturer installation manual is the authority for every measurement. Product listings provide valuable overall dimensions, but the manual identifies the exact cutout width, depth, and height, plus requirements for combustible materials, gas connections, electrical access, and ventilation. Use the specifications for the precise model and fuel type you are installing, not a similar-looking grill from the same collection.
There are usually several dimensions to distinguish. The overall width includes parts such as the control panel, side flanges, hood, and sometimes handles. The cutout width is the left-to-right opening required in the countertop and grill enclosure. The cutout depth runs from the front edge of that opening to the back wall of the cavity. The cutout height is the vertical space below the countertop needed for the grill head and its support structure.
Do not assume that a 36-inch grill requires a 36-inch opening. A nominal 36-inch built-in grill may need a cutout that is slightly narrower or wider, depending on how its countertop flange is designed. The flange generally rests on the countertop and conceals the finished edge of the opening. It is not meant to carry the entire weight of the appliance.
Tools for Measuring a Grill Cutout
A quality tape measure, a straightedge, a level, a pencil, and painter's tape will cover most planning work. For an existing island, a framing square helps confirm that the opening is truly square rather than merely close. A laser measure can be useful for long runs of cabinetry, but confirm the final opening with a physical tape measure before cutting stone or stainless steel.
Keep the installation manual beside you and record dimensions in one place. Measure at the front, center, and rear of the opening. Outdoor islands can settle slightly, and hand-built masonry or stucco structures are not always perfectly uniform. Use the smallest width and depth you find when checking whether the grill will fit.

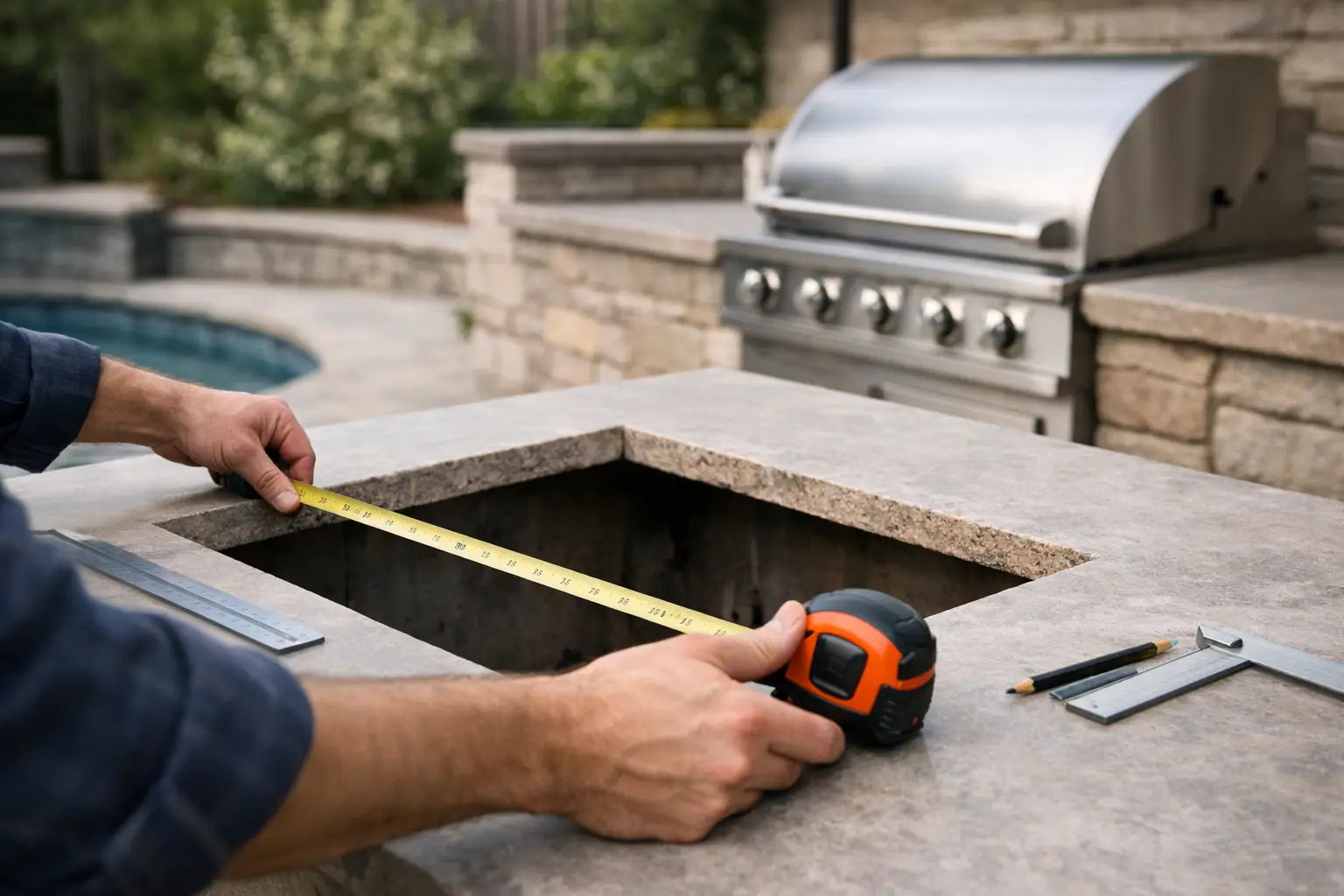

Measure Width at the Countertop Opening
Measure the clear horizontal opening from the finished left edge to the finished right edge. This is the cutout width, not the distance between cabinet doors or the exterior width of the island.
If the opening is already built, measure at three points: near the front, center, and back. An opening that tapers inward may accept the grill at the front but bind at the rear. Check the manual's permitted tolerance rather than forcing the unit into place. A tight fit can damage a powder-coated finish, chip a stone edge, or prevent proper expansion and service access.
When designing a new island, mark the planned width with painter's tape on the counter before fabrication. This lets you visualize the grill's relationship to side burners, drawers, refrigeration, and prep space. The grill may fit on paper while leaving too little counter space for a platter, a cutting board, or a guest's drink.
Measure Depth From the Finished Front Edge
Measure from the finished front edge of the cutout to the rear of the opening. Be precise about where the manual starts its measurement. Some manufacturers measure from the countertop cutout edge, while others reference the front face of the island.
Depth is often where an installation becomes complicated. The grill body may extend farther back than the cutout, and a gas regulator, power cord, rotisserie motor, or rear hood clearance can require additional room. Account for a finished backsplash, stone overhang, and any structural framing behind the grill. A deep grill installed in a shallow island may leave no space to connect the gas line without pinching it.
Also consider the lid. It needs room to open fully without striking a wall, pergola post, television enclosure, or low shelf. The hood's open height is different from the grill's cutout height, but it is just as relevant to a comfortable cooking station.
Confirm Height and the Support Ledge
The grill head must sit at the correct height so its flange rests evenly on the countertop. Measure from the underside of the countertop opening to the base or support ledge inside the island. Then compare that figure to the manufacturer's required cutout height.
Most built-in grills are supported by their side flanges and a specified internal structure, but requirements vary. Never let the firebox, burners, gas manifold, or grease tray bear against framing unless the manual explicitly allows it. An improperly supported grill can sag over time, interfere with grease management, or make routine maintenance difficult.
Use a level on the countertop and support ledges. Even a slight slope can cause the grill to sit unevenly, affect grease flow, and leave a visible gap along one side. For a luxury outdoor kitchen, this final alignment is part of the finish, not an optional detail.
Plan for Clearances, Insulated Jackets, and Ventilation
A grill can fit the opening and still be unsuitable for the island if required clearances are ignored. The key question is whether the enclosure is made from noncombustible material, such as masonry, concrete board, steel, or stone over an appropriate structure, or whether combustible framing is nearby.
Many premium built-in grills require an insulated jacket when installed near combustible materials. The jacket changes the installation dimensions, sometimes substantially. If a jacket is required, measure and build the cutout for the jacket's specifications, not the bare grill head. This is one of the most common and expensive planning mistakes because the island may need to be altered after the countertop is installed.
Ventilation is equally important. Outdoor grill islands need ventilation openings placed according to the appliance and fuel requirements. These openings help prevent gas from accumulating inside the enclosure. Do not treat vents as decorative details or cover them with stored items, panels, or landscaping.
Clearances also apply above and behind the grill. Review requirements for rear walls, side walls, overhead structures, and adjacent appliances. A grill positioned under a covered pavilion can create an exceptional entertaining setting, but the cooking area must have appropriate clearance and ventilation for the grill and the structure.
Check Gas, Electrical, and Service Access Before Cutting
The opening needs more than a grill. It needs a safe path for utilities and a practical way to service the appliance later. Confirm whether the model uses natural gas or propane, and verify that the gas line, shutoff valve, regulator, and connector will be located where the manufacturer permits.
Plan electrical access if the grill includes interior lighting, a rotisserie, ignition components, or digital controls. The outlet should be accessible without requiring the grill to be removed. Avoid routing cords or gas lines across sharp metal edges or through areas that become excessively hot.
Think ahead to maintenance. Grease trays, drip pans, burners, briquettes, and ignition components eventually require cleaning or replacement. Leave the prescribed access space around removable parts. A beautiful grill island should make hosting easier, not turn ordinary upkeep into a demolition project.
Make a Full-Size Template Before Fabrication
Before cutting a countertop or approving shop drawings, create a full-size template from cardboard, kraft paper, or painter's tape. Mark the cutout dimensions, the grill's exterior footprint, hood swing, handle projection, and nearby appliance doors.
This simple step reveals details that dimension charts cannot: whether a beverage cooler door collides with a drawer, whether a side burner crowds the grill controls, or whether two cooks can work at the island without competing for the same landing space. For a larger outdoor kitchen, mark stool locations and circulation paths as well. A well-proportioned entertaining space feels generous because every element has room to perform.
Final Fit Checklist for Your Built-In Grill
Before the grill arrives or the countertop is cut, confirm the model number, fuel type, and installation manual revision. Verify the finished cutout width, depth, and height; required clearances; insulated jacket dimensions if applicable; ventilation openings; utility locations; support structure; and lid-opening space.
If any measurement conflicts with the appliance documentation, pause before fabrication. This is the moment to involve the installer, contractor, or qualified gas professional. It is far easier to adjust a plan than a finished stone counter.
A measured, well-planned grill cutout protects the investment beneath the lid and the gatherings around it. Get the dimensions right, and your outdoor kitchen is ready to enrich ordinary weeknights as beautifully as it hosts the occasions worth celebrating.
